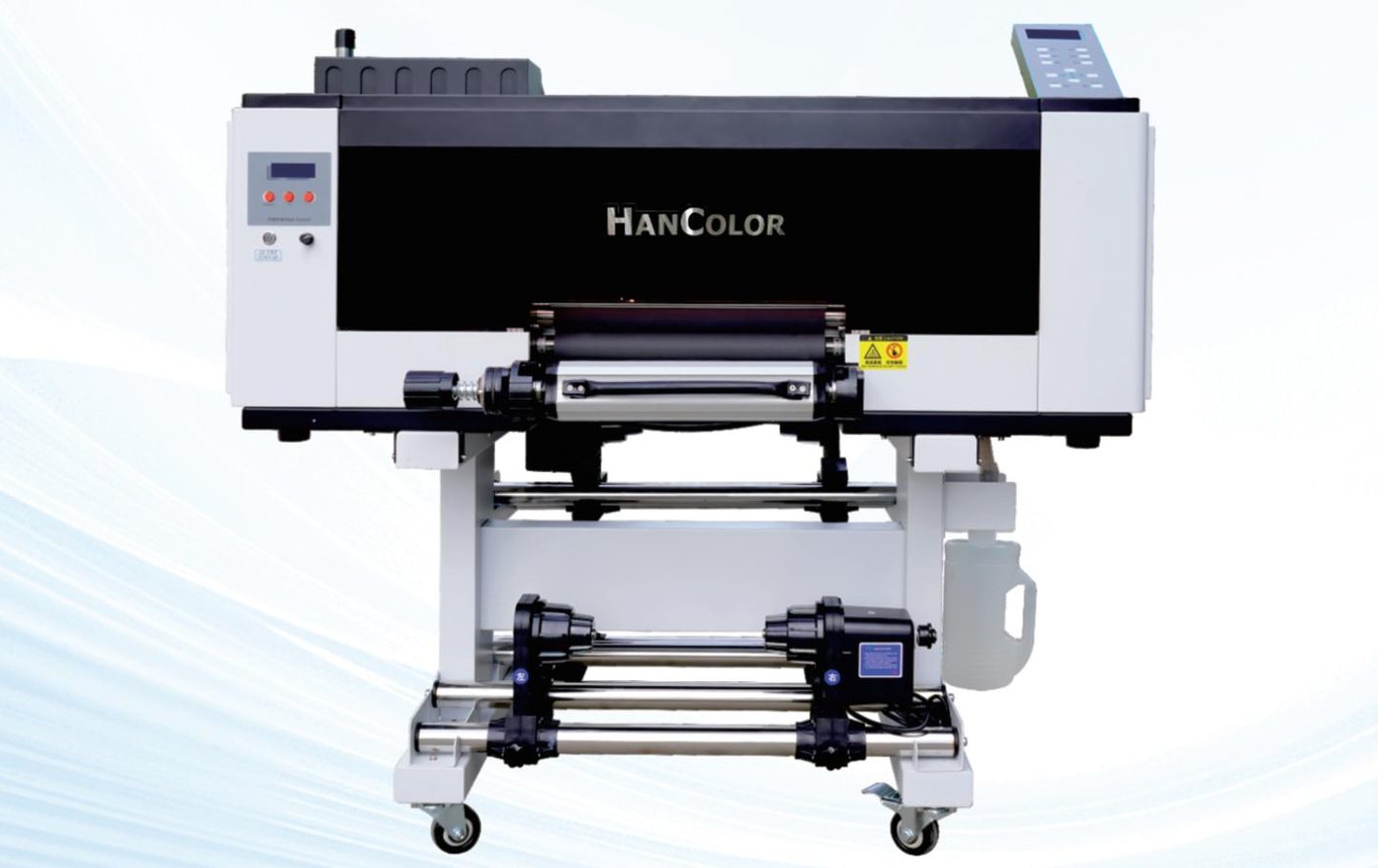

HANCOLOR A3 UV DTF PRINTER
The HanColor 30 cm A3 UV DTF printer prints UV DTF (AB film) stickers with three Epson XP600 (F1080-A1) heads in CMYK + white + varnish, and laminates the film in line.
The finished transfers stick to cups, bottles, phone cases, boxes and other hard surfaces without a heat press — ideal for small batches and custom gifts.
The finished transfers stick to cups, bottles, phone cases, boxes and other hard surfaces without a heat press — ideal for small batches and custom gifts.
Key Features

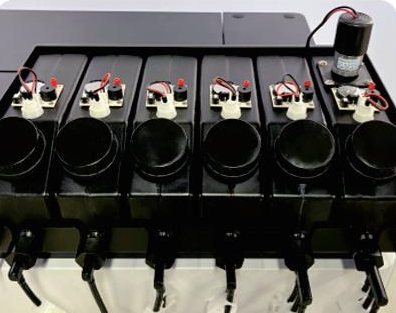

Ink supply system
Continuous ink supply (CISS) for white, colour and varnish.

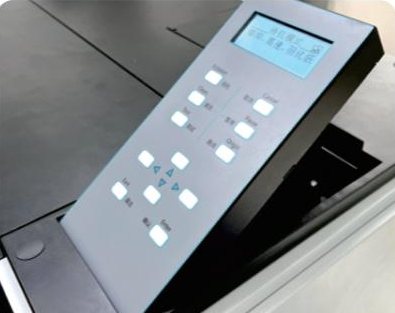

Control panel
Simple button panel for daily operation.

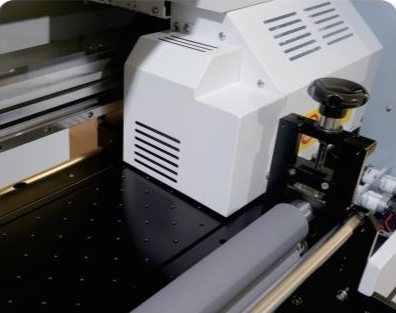

Head anti-collision device
Protects the print heads from film edges and bumps.

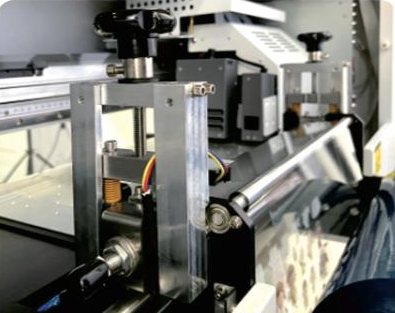

Laminating device
Laminates the A and B films in line, right after printing.

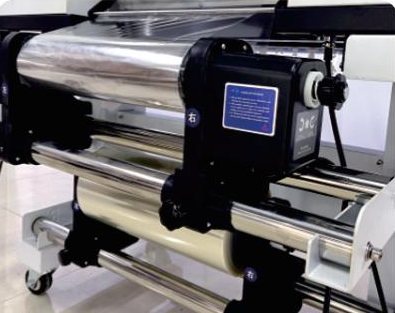

Feeding device
Roll feeding and take-up for continuous sticker production.
UV DTF with O-SUNG C&T
Ask us about UV DTF AB film and UV inks for this printer, and for application tips on cups, bottles and hard goods.
Specifications
| Model | 30cm A3 UV DTF |
|---|---|
| Print head | 3 × Epson XP600 (F1080-A1) |
| Print width | 30 cm (A3) |
| Speed | 6 pass 4 / 8 pass 3 m²/h |
| Resolution | Up to 2400 dpi |
| Ink / colours | UV ink, CMYK + White + Varnish |
| Ink supply | CISS continuous ink supply |
| Board / RIP | Senyang / Photoprint |
| Power | 1200 W, 220 V 50/60 Hz |
| Packing size | 1584 × 754 × 700 mm |
| Weight | 158 kg |
Send a quote request with your voltage and expected daily output, and we will reply with the right configuration and price.
